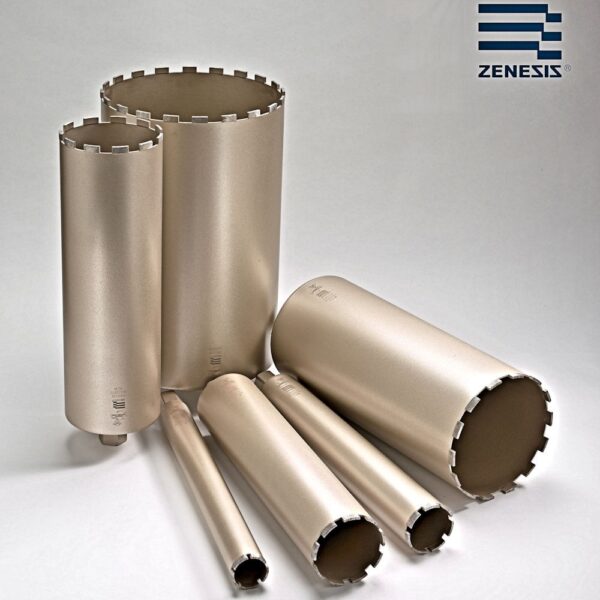

PRO-ZW
Core Bit Description
ZENESIS Patterned Diamond Segments for Extreme Performance
- Professional Quality Core Bits

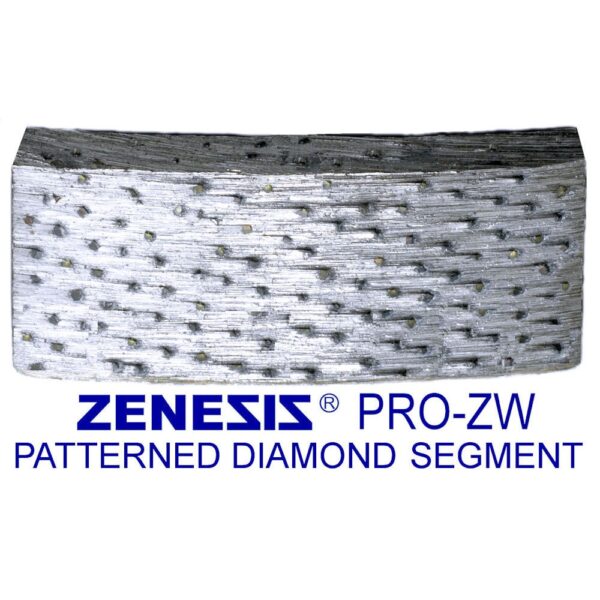

- 12mm High, Laser Welded Roof-Top Segments
- Pre-dressed easy start Segments
- High Diamond Concentration
- Balanced Barrel
- Core Bit Back-end Fitting
- 24mm to 45mm – ½” BSP (Male) & 48mm to 600mm – 1¼”UNC (Female)
- Standard working lengths 25mm to 45mm – 350mmL & 48mm to 600mm – 450mmL
Increased working lengths available to order at 20% extra, for each additional 300mm or part thereof
£70.00 – £878.00
Materials / Application
For use with Hand-held Equipment, Drill Rigs & Trailer Rigs
These Diamond Core Bits are designed for use on the following Materials
VERY HARD MATERIALS
Clay Pavers, Engineering & Semi Engineering Brick, Clay Roof Tiles
Hard Concrete Pipes/ Slabs/ Kerbs/ Lintels
Hard Cured Concrete, Flint & Quartz Aggregate
Hard Facing Brick
Hard Reinforced Concrete
Hard Stone, Granite / Dense York Stone / Indian Sandstone etc.
Slate
Terrazzo
Very High Alumina Refractory Materials & Acid Resisting Brick
Vitrified & Other Clay Pipes
MEDIUM HARD MATERIALS
Medium Hard Concrete, Quartz & Limestone Aggregate
Medium Facing Brick
Medium Hard Concrete Block 10N/mm2 to 25N/mm2
Medium Hard Concrete Kerbs / Slabs / Pipes / Lintels etc.
Medium Hard Reinforced Concrete
Medium Hard Stone – Bath / Limestone / Portland etc.
Medium-High Alumina Refractory Materials 40-60%
Other Medium Hard Concrete Products
SOFTER ABRASIVE MATERIALS
Asphalt / Tarmac
Concrete Pavers
Reconstituted Stone & Soft Concrete Products
Soft Facing Brick
| Diameter (mm) | 24, 25, 26, 28, 30, 32, 36, 38, 40, 42, 45, 48, 50, 52, 56, 62, 65, 78, 82, 88, 91, 92, 102, 107, 107 BT Bit 250L, 112, 117, 122, 127, 132, 142, 152, 158, 172, 178, 200, 212, 225, 250, 275, 300, 325, 350, 375, 400, 450, 500, 550, 600 |
|---|
